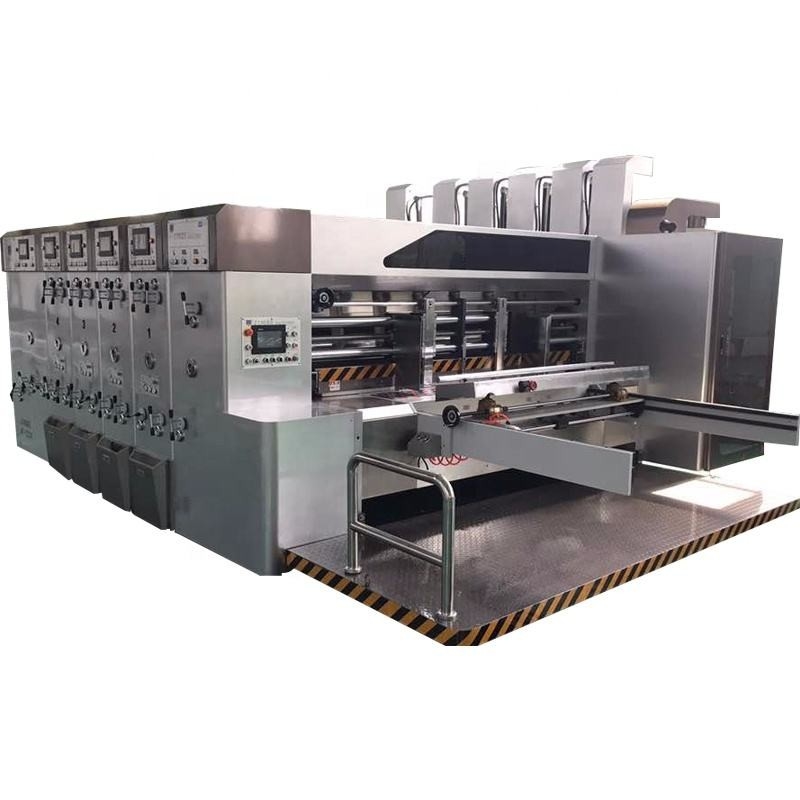

Flexo Printer Slotter Die Cutter
A, feeder Unit

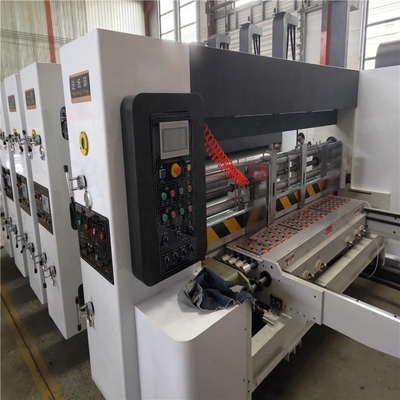

1) The master control panel by the control buttons and touch screen control
operation, convenient and reliable.
2) Lead edge feed (with counter). Serve absorb feed paper , protect the corrugated cardboard not press .
3) set for counting of paper, showing the production number.
4) The location of left and right bezel control of mechanical power by the ruler display moving distance.
5) The front bezel to manually adjust the gap.
6) 15KW wind turbine, suction feeding, the electric inverter to adjust the air volume, according to board bending different, so air flow adjustments to ensure smooth paper.
7) The dust removal device and fan brush the surface clean cardboard scraps of paper.
8) sending paper up roll diameter ф190mm, thick-walled seamless steel pipe, wrapped in plastic wear phase, that is to maintain flexibility and ensure that the surface wear and reduce the squash into the board.
9)front feed under the roller diameter ф190 mm, back feed under diameter ф190 m, quenched and tempered seamless steel grinding the surface of hard chromium plated embossed and treatment. Back feed up roller diameter ф100 mm.
10) The transmission uses two roller drive Oldham Coupling, reducing wear and tear to make the drive more stable.
11) the use of electric sub-machine fit, with a continuous alarm warning lights the move to ensure the safety of operations.
12) shaft with electromagnetic friction clutch, to prevent malfunction or overload protection of the motor will not burn.
13) feeder, printing department, the Department of cutting electric automatic zero.
14) Pneumatic chain of devices.
